ON SITE CUTS

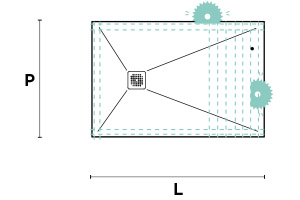

| Long side (W) > MAX cut 4 cm | You can make a cut in length or in depth on the side that will lean against the wall. The reduced side remains raw. |
Cuttable bulk section > it can vary according to the dimensions of the shower tray. |
MAX 1 cm short side (P) |

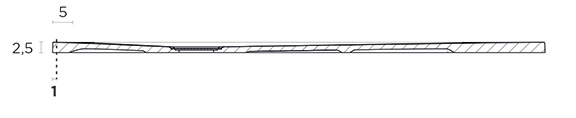

| section |
For all processes, contact the technical department to check the feasibility! |  |

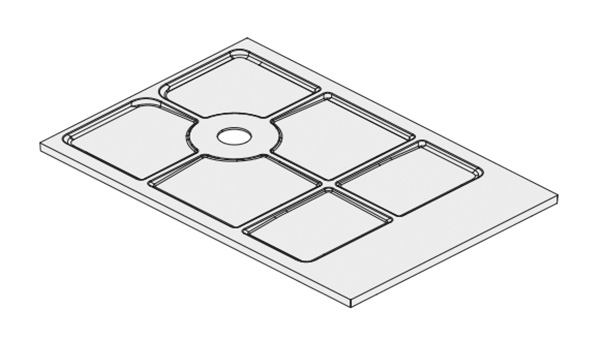

| Back of the shower tray (example) |
| Linear is a lightened shower tray with a solid mass final part (flat part) which can be easily cut on site. |
CUSTOMIZED CUTS
DRAWING | ITEM | PRICE | DESCRIPTION OF PROCESSING (of the supplier) |

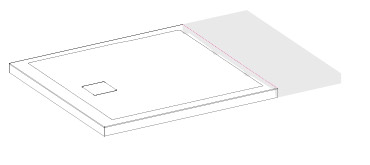

| MTA7 | LENGTH REDUCTION | 1 SIDE (to mm) A cut is made on the side. The reduced side is restored. The flat part of the shower tray can be cut to length to the mm within the ranges indicated on page 35. The cuttable part is marked with an asterisk* |

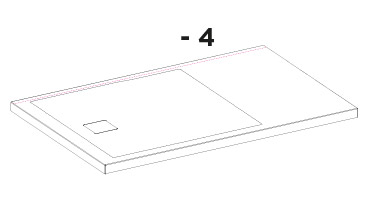

| MTA8 | DEPTH CHANGE | 1 SIDE (only wall sides > MAXIMUM 4 cm) A cut is made on the back. The cut side remains raw. This shifts the plug out of alignment on the depth but keeps the front edge intact for the shower enclosure support. The reduction is not reversible, so it is necessary to indicate which side will be reduced. |

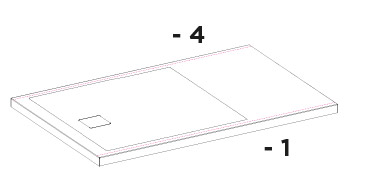

| MTA9 | DEPTH CHANGE | 2 SIDES (MAXIMUM 5 cm) The cutting of both sides of the tray is performed on the depth. A maximum of 5 cm total is trimmed (4 cm on the back side and 1 cm on the front side) in order to maintain a front support edge of 3.5 cm. The front side is finished, while the back side is raw. The reduction is not reversible, so it must be specified which side will be the front and which will go to the back. |

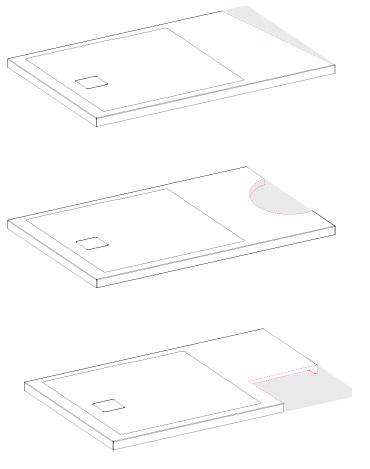

| MT00 | SPECIAL CUT: OBLIQUE / OUT-OF-SQUARE / SHAPING (only wall sides) A special cut is made on one side of the tray. The cut side remains raw, so it can only be positioned against the wall. |
