IBRA – FIRMA Battente listino 3 ABFL

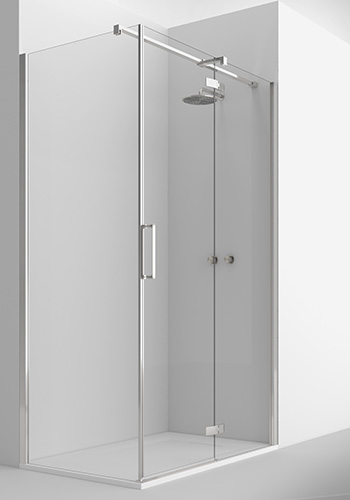

FIRMA BATTENTE	Corner	Hinged door with fixed lateral panel

	Height 200 cm
	Glass th. 6 mm
	Out of standard: height max. 210 cm / width max. 160 cm / depth max. 100 cm
	Stabilizing bar (A) to be cutted during installation included

Configurations:

Left

Right

NOTE! The width of the door (D) is given by the opening (H) + 3 cm.

SURCHARGES

Out of standard

Serigraphies:

+30%

(ask for feasibility)

+25%

increase on the Trasparente price

Limescale treatment:

Side

NOTE
Specify the direction at the time of order.

P – SWING DOOR

ITEM	EXTENSIBILITY	TRAY	OPENING	FIXED	PROFILE

					BRILL / NERO	INOX/ORO/RAME	COLORATO

					GLASS

D6BA300	77,5-79,5	80	44	29

D6BA305	82,5-84,5	85	44	34

D6BA310	87,5-89,5	90	44	39

D6BA315	92,5-94,5	95	54	34

D6BA320	97,5-99,5	100	54	39

D6BA325	102,5-104,5	105	54	44

D6BA330	107,5-109,5	110	54	49

D6BA335	112,5-114,5	115	54	54

D6BA340	117,5-119,5	120	54	59

D6BA345	122,5-124,5	125	64	54

D6BA350	127,5-129,5	130	64	59

D6BA355	132,5-134,5	135	64	64

D6BA360	137,5-139,5	140	64	69

NOTE
Specify the direction at the time of order.

L – FIXED

ITEM	EXTENSIBILITY	TRAY			PROFILE

					BRILL / NERO	INOX/ORO/RAME	COLORATO

					GLASS

D6BA365	67,5-69,5	70

D6BA370	72,5-74,5	75

D6BA375	77,5-79,5	80

D6BA380	82,5-84,5	85

D6BA385	87,5-89,5	90

D6BA390	92,5-94,5	95

D6BA395	97,5-99,5	100

GLASS

	TRASPARENTE
	BRONZO \| SATINATO \| GRIGIO EUROPA

FIRMA BATTENTE

P – SWING DOOR

L – FIXED
