CUTS
| For all processes, contact the technical department to check the feasibility. | It is possible to have a customized cut by Ibra Showers on the side that will lean against the wall. The reduced side remains raw. |

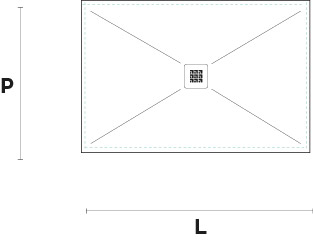

| section |
|  |

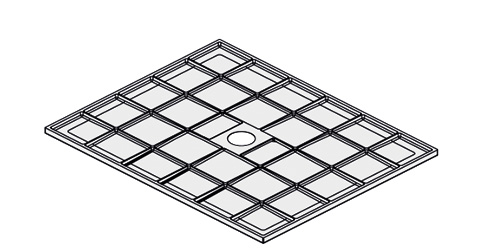

| Back of the shower tray (example) |
| Arya has ribs on the backside which make the shower tray extra light, therefore in case of cuts it is necessary to contact Ibra Showers. |
PERSONALISATIONS
DRAWING | ITEM | PRICE | DESCRIPTION OF PROCESSING (of the supplier) |

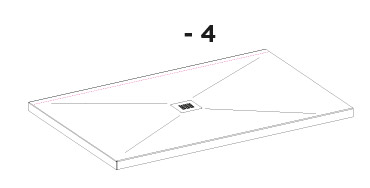

| MTA8 | DEPTH CHANGE | 1 SIDE (only wall sides > MAXIMUM 4 cm) A cut is made on the back. The cut side remains raw. This shifts the plug out of alignment on the depth but keeps the front edge intact for the shower enclosure support. The reduction is not reversible, so it is necessary to indicate which side will be reduced. |

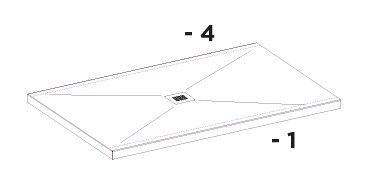

| MTA9 | DEPTH CHANGE | 2 SIDES (MAXIMUM 5 cm) The cutting of both sides of the tray is performed on the depth. A maximum of 5 cm total is trimmed (4 cm on the back side and 1 cm on the front side) in order to maintain a front support edge of 3.5 cm. The front side is finished, while the back side is raw. The reduction is not reversible, so it must be specified which side will be the front and which will go to the back. |
| MT00 | SPECIAL CUT: OBLIQUE / OUT-OF-SQUARE / SHAPING (only wall sides) A special cut is made on one side of the tray. The cut side remains raw, so it can only be positioned against the wall. |
