DETAILS TO REMEMBER |

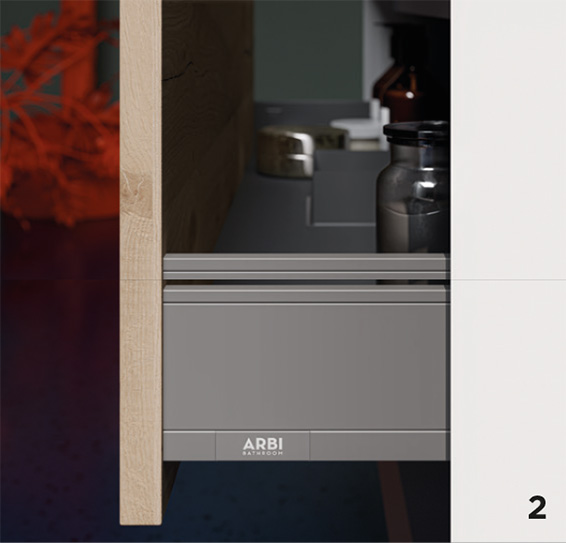

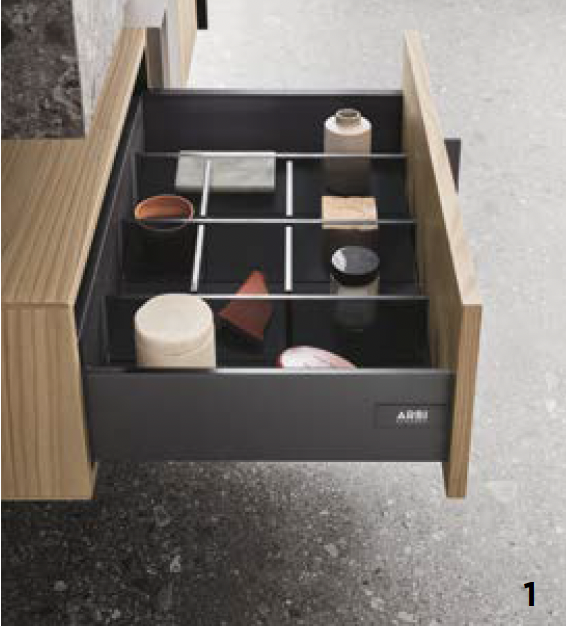

GRIGIO ANTARO DRAWER SIDES
In the Sky, Street, Decor, Fusion, Sky Special, Street Special, Fold, Maison, Augusto, and Bonton models, the elements with drawers have Antaro internal sides in gray metal. All sides include the Blumotion closing system. This mechanism allows for the drawer to be pulled and guided, preventing abrupt closures.
All drawers have customized plates with the Arbi logo.

DRAWER SIDE MEASUREMENTS

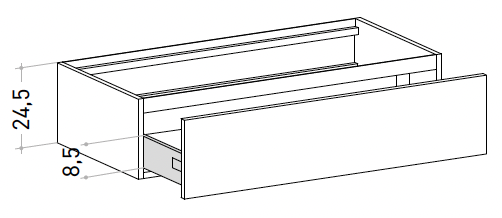

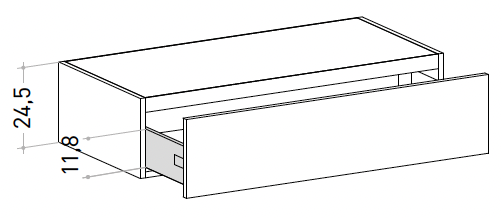

DRAWERS H. 24.5 CM
WASHBASIN UNITS: side H. 8.5 cm
BASE UNITS: side H. 11.8 cm

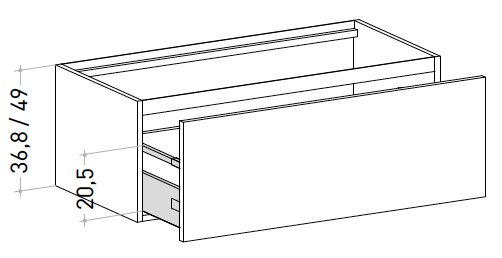

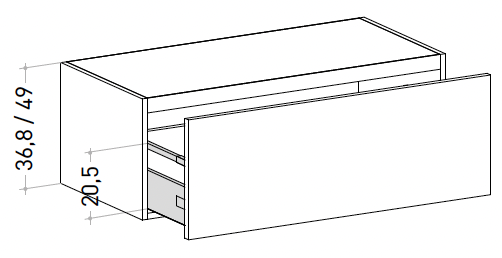

DRAWERS H. 36.8 – 49 CM
WASHBASIN UNITS and BASE UNITS: side with containment rail
Total H. 20.5 cm
The following types of plinth or foot are available upon request with surcharge.
photo 1: wooden plinth. The cabinet is supported by height-adjustable plastic feet, to which the closing plinth is attached.

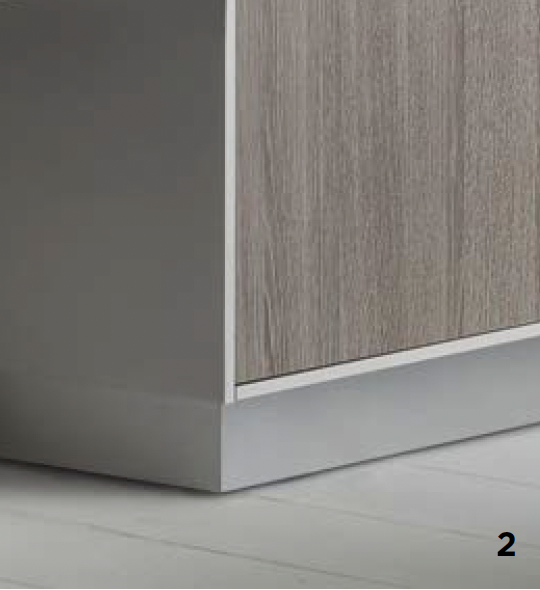

photo 2: aluminum frame plinth H 10, H 5 or H 2 cm, in the finishes Brill, NERO, Bronze, Gold or matt color.
photo 3: Pic feet H 2 cm in Chrome or NERO finish.

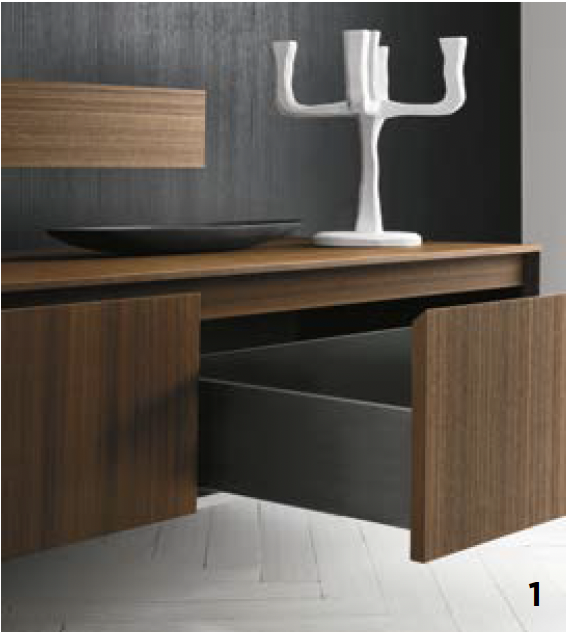

GRIGIO LEGRABOX DRAWER SIDE
In the Almond, Code, Absolute, Master, and Luxor models, the elements with drawers have Legrabox internal sides in grey metal. All sides include the Blumotion closing system. This mechanism allows for the gentle pull and closure of the drawer, preventing abrupt closures.
All drawers have customized plates with the Arbi logo.

DRAWER SIDE MEASUREMENTS

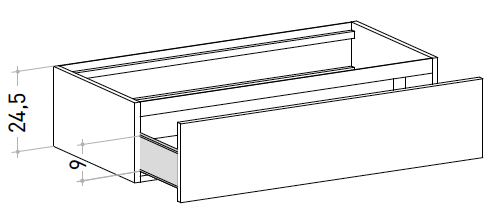

DRAWERS CODE, ABSOLUTE H 24.5 cm and LUXOR H 25.7 cm
WASHBASIN UNITS: low side (H 9 cm)
BASE UNITS:

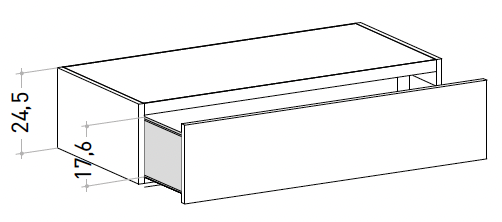

ABSOLUTE high side (H 17,6 cm)
CODE WAVE high side (H 17,6 cm)
CODE low side (H 9 cm)

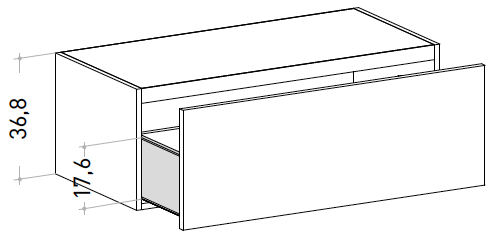

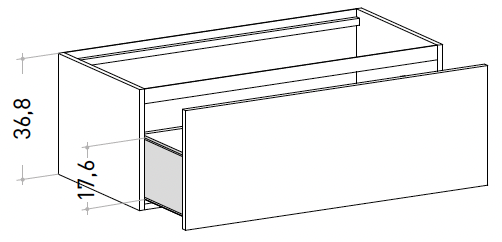

DRAWERS CODE, ABSOLUTE H 36.8 cm and LUXOR H 38 cm
WASHBASIN UNITS and BASE UNITS: high side (H 17.6 cm)

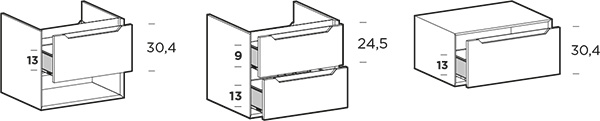

MASTER DRAWERS H 24.5 – 30.4 cm
WASHBASIN UNITS and BASE UNITS: side (H 9/13 cm)
The back of the washbasin units is always open (see photo) so as not to interfere with the position of the drains.

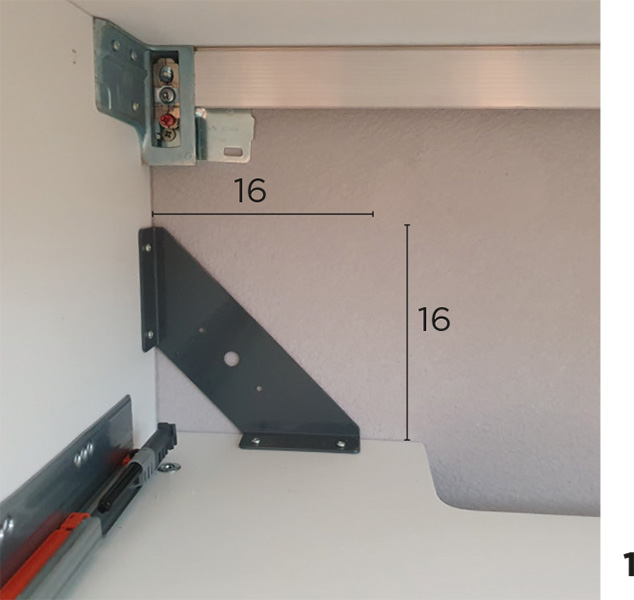

Photo 1: in the washbasin units with a height of 36.8 cm and higher, the bottom panel is always whole. It is possible to use the hole present in the corner bracket for additional wall mounting.

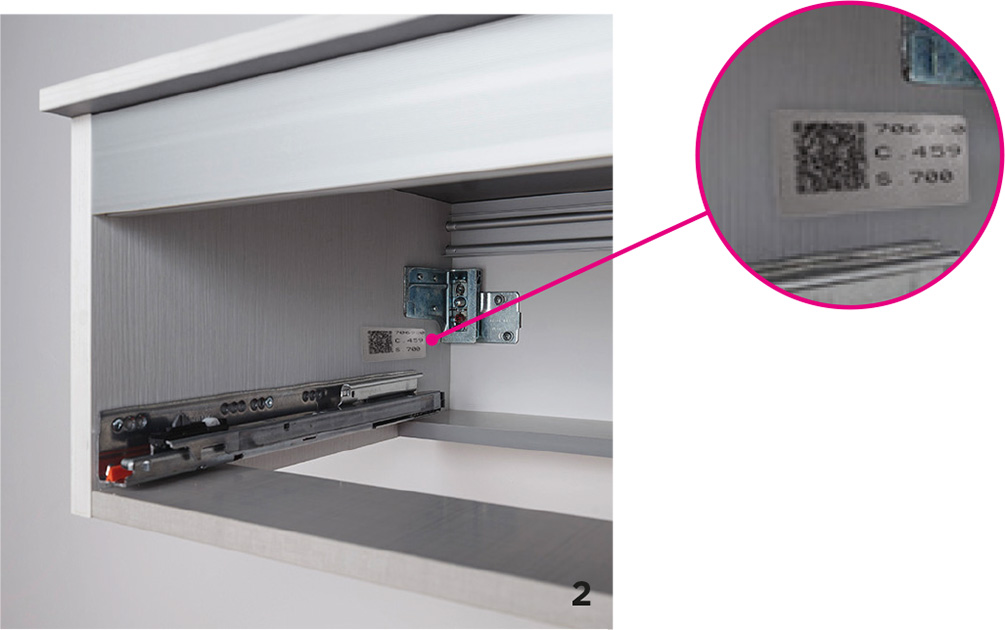

Photo 2: in the washbasin units with a height of 24.5 cm, the bottom panel is always open to allow the passage of the drains.
