ULISSE MONOLITE

ULISSE MONOLITE

Monolite composed of two elements:
washbasin unit covered in 6 mm Laminam or gres
and countertop washbasin in the same smooth finishes.

Ulisse Washbasin

WALL-MOUNTED

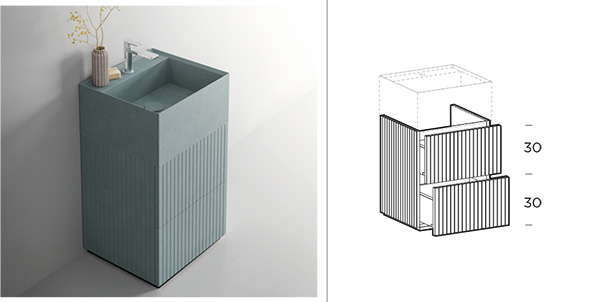

Monolite washbasin unit with 2 drawers
(Legrabox sides)

Nero aluminium
plinth H. 2 cm
(included)

	ITEM	5	6

	Monolite washbasin unit 2 drawers, with plinth H 2 cm WALL-HUNG	JX3O
	W. 51.2 x H. 62 x D. 45.7 cm

POSITION OF DRAIN RECOMMENDED

(with Arbi drain pipe)

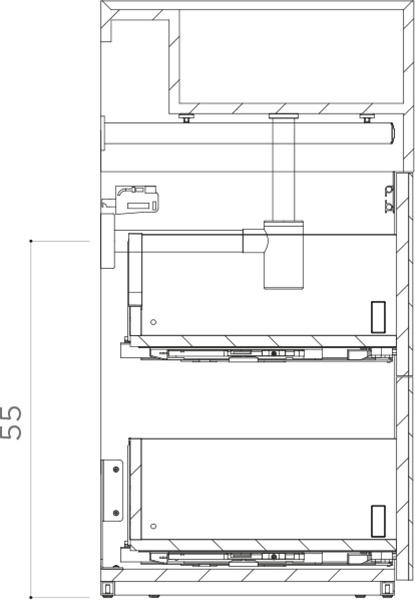

LATERAL VIEW

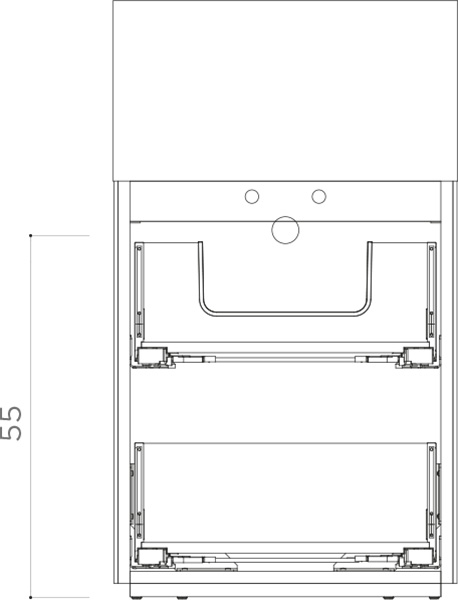

FRONT VIEW

WASHBASIN ULISSE

	ITEM	5	6

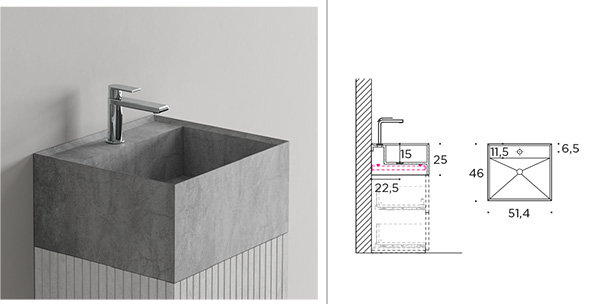

	ULISSE Washbasin with tap hole W 51,4 x H 25 x D 46 cm	R00H
	weight GRES /LAMINAM: 30 kg Use only as a countertop on base W 51.2 x H 62 x D 45.7 cm Install with plug art. 5698/5680 art. AC12/AC11 (to be ordered with the top, not afterwards)
	WARNING! Countertop installation using brackets art. 6955. Check wall strenght with washbasin weight.

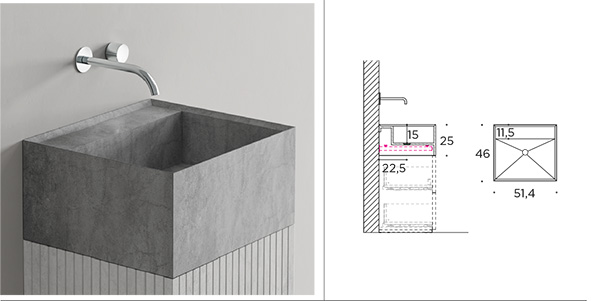

	ULISSE Washbasin without tap hole W 51.4 x H 25 x D 46 cm	R00I
	weight GRES /LAMINAM: 23 kg Use only resting on base W 51.2 x H 62 x D 45.7 cm Install with plug art. 5698/5680 art. AC12/AC11 (to be ordered with the top, not afterwards)
	WARNING! To be supported using brackets art. 6955. Check wall strenght with washbasin weight.
