FOX BOOKCASE |
TECHNICAL FEATURES
> UPRIGHTS:black aluminum uprights, section W2.5 x D 5 cm withadjustable foot (2 cm) in the lower part and fixing to thewall or to the ceiling.> SHELVES:in transparent grey glass with black aluminum frame 2cm Th.Fixing supports included.> LIGHTING:Uprights also available with 3000K LED light integratedinto the rear part.> CASES:Join base units with drawer (SKY, STREET and DECORmodels), and folding drawer base units CODE in dimensionsW 50-70 x H 36.8 x D 37 cm. Back and bottom alwaysfinished. Fixing supports included..
UPRIGHT FINISHING
ALUMINIUM
NERO
SHELF FINISH
GLASS
GRIGIO
upright
upright with LED
The LED lighting is placed in the rear part of the upright with the power cable output in the lower part. A power supply is included for each upright.
3000K LED light.
H. max composition: 284 cm
H. max composition: 284 cm
wall support
WALL UPRIGHT
BASE WITH DRAWER
SHELF
FEET ON GROUND
H 35 mm adjustable (20 mm)
FOX CEILING BOOKCASE
H. max composition: 285 cm
ceiling fixing
H. 15 mm
CEILING UPRIGHT
BASE WITH DRAWER
SHELF
foot on the ground
H 35 mm adjustable (20 mm)
NOTE! When ordering, always specify the total height of the upright.

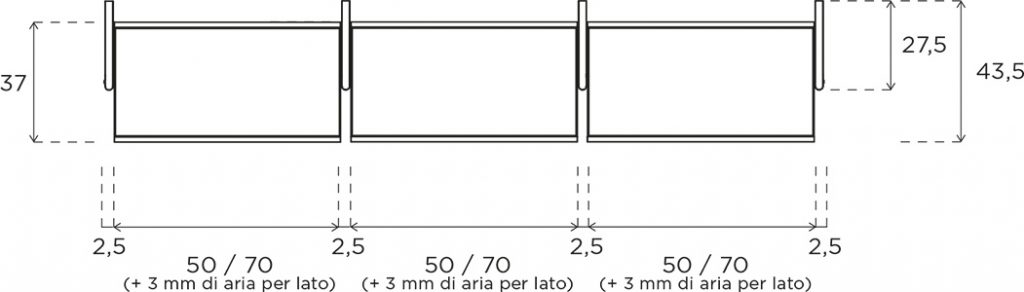

Wall bookcase

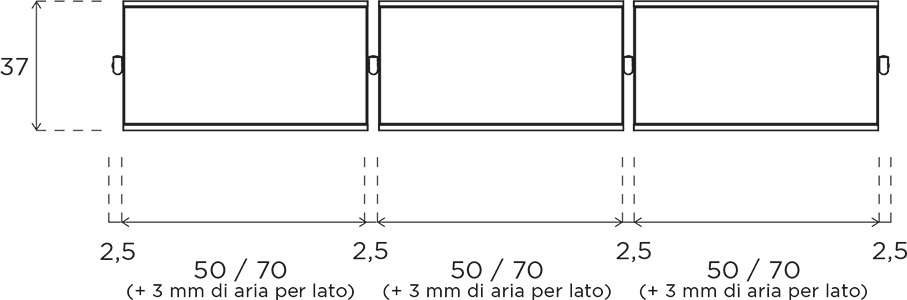

Ceiling bookcase

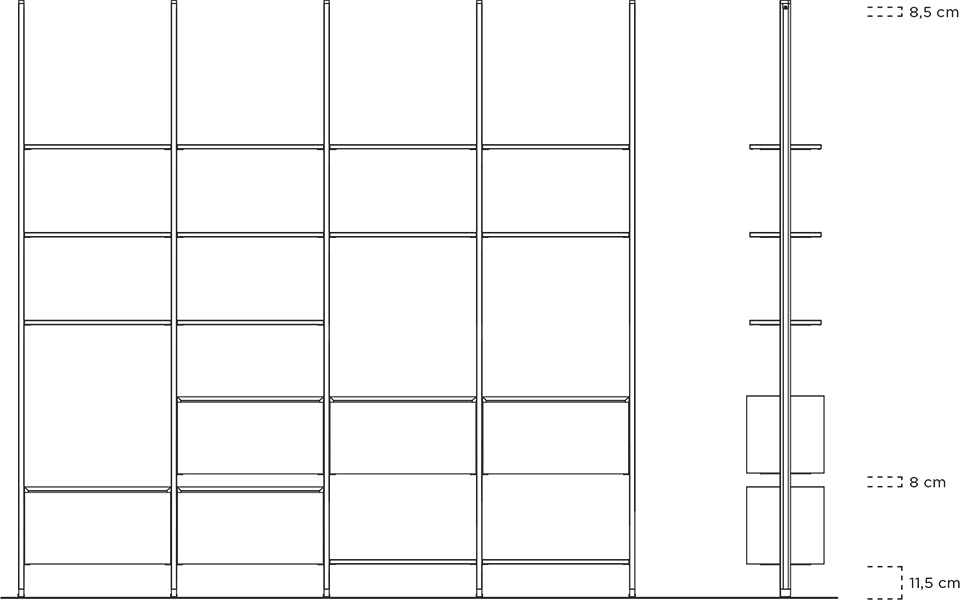

POSITIONING OF SHELVES AND CASES
minimum distance between the last shelf and the upper part of the upright
minimum distance between two elements
minimum height for case/shelf positioning
